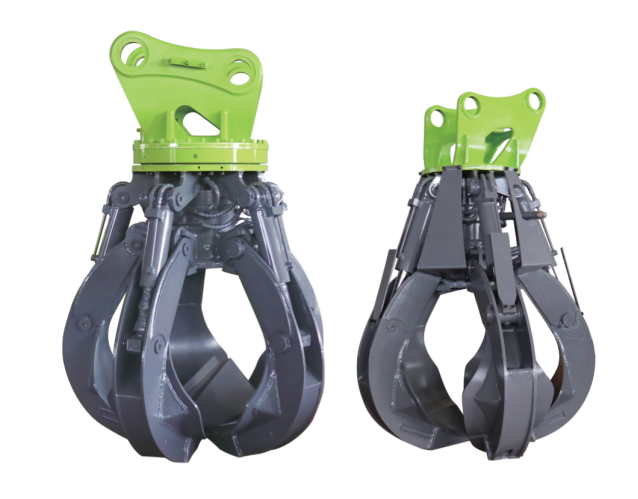

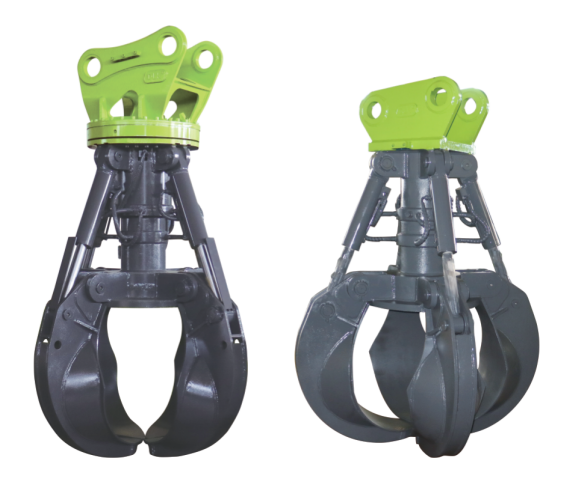

蓮花抓

Orange Peel Grapple

適用對象:散裝石料、鋼材、木料等物料的裝卸、搬運作業

產品特點

◆采用NM500耐磨鋼材,質量輕、耐磨

◆銷軸采用42CrMo合金鋼,內置油道, 強度高、韌性好;

◆可選裝瑞士進口旋轉馬達

◆旋轉式使用立式鎩車馬達旋轉系統,360°旋轉, 具有剎車制動功能;

◆油缸采用珩磨管, 進口HALLITE油封,工作周期短、壽命長;

 Product Feature

 Suitable for small objects in bulk scrap iron, waste and

 other resources handling.

 . Cylinder rod protection.

 Rotation types:360 free rotation or fixed types.

 . All pin holes and bushing inserts are heat treated to

 increase wear and equipment lifetime.

 . Equipped with self-designed- hydraulic cylinders to

 reduce your maintenance costs, increase the clamping

 force and improve the working efficiency.

項目/型號 Item/Model	單位 Unit	TKG04	TKG06	TKG08	TKG10
重量 Weight	Kg	560	800	1900	2200
最大開口 Max Open Jaw	Mm	1600	1600	2500	2900
張口高度 Height of Opened Grapple	Mm	1150	1480	2000	2500
最大壓力 Max Pressure	Bar	260	260	320	320
最大流量 Max Flow	L/Min	20~70	60~120	200~250	250~300
容量 Capacity	Litre	400	500	1000	1200
瓣數 No.of Jaw	Pcs	4~5	4~5	4~5	4~5
適用挖掘機 Carrier	Ton	6~8	10~15	18~24	26~35
